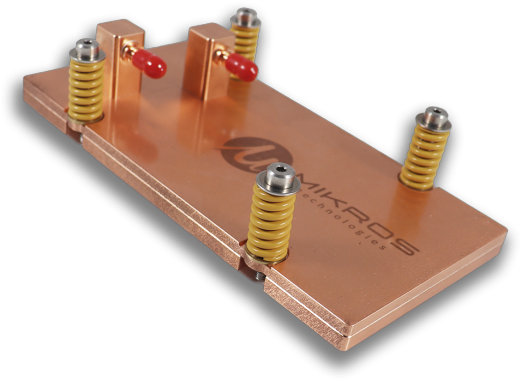

Introducing AX-NV2 Direct-to-Chip Cooling for Blackwell

Customizable liquid cooling ready for Nvidia’s B200 GPU

CLAREMONT, NH –November 13, 2024 – Mikros Technologies, a designer and manufacturer of advanced liquid cooling technologies for high-power electronics, will introduce the Ascutney AX-NV2 cold plate at this year’s Supercomputing Expo at the Georgia World Congress Center in Atlanta from November 19-21, 2024. Designed and optimized for the Nvidia Blackwell GPU series, product samples will be available in Hall B, booth #3825, and engineers will be available to answer questions.

With the rapid growth of artificial intelligence (AI) and the increase in power densities, hyperscalers (large cloud service providers), internet service providers, enterprises, industry, and governments are turning to liquid cooling solutions to improve data center performance and increase energy efficiency. The Ascutney AX-NV2 liquid cold plate is optimized for the accelerated computing of Blackwell GPUs, and this single-phase solution increases computing power and extends the lifespan of a chip.

“With greater heat transfer effectiveness at the chip level, the Ascutney AX-NV2 helps clients meet their data center sustainability goals by reducing the level of power needed for cooling. A major advantage lies in the fact that the inlet coolant on Mikros Technologies’ cold plates runs at temperatures ten or more degrees higher than our competitors, while still achieving more effective cooling outcomes on high-power GPUs,” said Drew Matter, Mikros Technologies CEO.

The heat transfer effectiveness of the Ascutney AX-NV2 cold plate enhances a user’s thermal budget by offering lower thermal resistance than is possible with skived fin cold plates. Lower thermal resistance enables lower flow rates and higher inlet/outlet temperatures, improving power usage effectiveness (PUE) for data centers.

Product specifications for the Ascutney AX-NV2 include a cooling capacity of 60 watts per degree Celsius at a flow rate of one liter per minute. The cooling capacity increases with higher flow rates. It also has a low pressure drop, measured at 1 liter per minute and 1.3 pounds per square inch (PSI). It can be lidded or lidless and will work with a wide variety of quick-disconnect fluid line brands.

The standard silicon area dimensions for the Ascutney AX-NV2 are 53 mm x 58 mm. Still, the cold plate is customizable to fit various applications and can be zoned to optimize flow between the core die and high bandwidth memory (HBM) die. It will easily fit in a single rack unit (1U) and integrate with new or existing single-phase systems.

Every copper part in the Ascutney AX-NV2 cold plate is precision-machined and joined using vacuum furnace brazing. This clean, low-pressure process creates leak-proof joints, and then each cold plate is tested using helium gas and a mass spectrometer to guarantee there are no leaks in the field.

“Product reliability is our top priority,” said Joe Sullivan, Mikros Technologies’ engineering manager. “When chips cost tens of thousands of dollars and servers run into the millions, providing leak-free, endurance-tested cold plates is a critical part of our client’s computing investment.”

Mikros Technologies, established in 1991, has been at the forefront of innovative thermal management technology. As a leading design house and manufacturer, the company specializes in providing advanced thermal management solutions to enhance electronic performance, efficiency, and scalability. Their expertise spans a wide range of markets, including the effective cooling of high-performance CPUs, GPUs, transceivers, insulated-gate bipolar transistors (IGBTs), lasers, optics, and other components. As a Jabil company, Mikros Technologies provides its customers with access to over 100 manufacturing sites across more than 25 countries, enabling the rapid scaling of designs and entry into new markets.

# # #
